SIRAH ngabagi universal
Sirah ngabagi universal, Tipe FW80, F11100A, F11125A, F11160A mangrupa salah sahiji kantétan pangpentingna pikeun panggilingan machine.With bantuan sirah ngabagi ieu, nu workpiece deld antara puseur, atawa dina cuk a bisa muterkeun ka sagala sudut sakumaha dipikahoyongna. jeung periphery of workpiece a bisa diveded kana sagala divisions sarua parts.By cara sagala jinis cutters, sirah ngabagi ogé bisa mantuan mesin panggilingan pikeun ngalakukeun poeration panggilingan pikeun suling, gear sper, suling spiral, Archimedeancam, suling hélik. jeung sajabana.
Sirah ngabagi ieu dilengkepan plat raray nu bisa dipasang onto spindle mose. workpiece The bisa dipasang dina beungeut plat, sahingga motong bisa dilaksanakeun dina 4-sisi workpiece a.
| SPESIFIKASI UTAMA | |||||
| Barang | Tipe | ||||
| FW80 | F11 100A | F11 125A | F11 160A | ||
| Jangkungna puseur (mm/in) | 80 | 100 | 125 | 160 | |
| 3.15 | 3.94 | 4.92 | 6.3 | ||
| Sudut ngadengdekkeun tina spindle | ≥ 95 ° ;≥ 5° | ||||
| Sudut puteran tina spindle pikeun hiji lengkep | 9° | ||||
| revolusi cecekelan ngabagi | |||||
| Min.nilai vernier | 10″ | ||||
| Babandingan gear cacing | 1:40 | ||||
| Diaméter spindle register taper (mm/in) | Φ36.541 | Φ41.275 | Φ53.975 | ||
| Φ1.441 | Φ1.63 | Φ2.13 | |||
| Spindle taper bore (Morse) | MT NO.3 | MT NO.4 | |||
| Lebar konci locating (mm/in) | 14 | 18 | |||
| 0.55 | 0.71 | ||||
| liang Jumlah plat liang | Beungeut munggaran | 24, 25, 28, 30, 34, 37, 38, 39, 41, 42, 43 | |||
| Beungeut Kadua | 46, 47, 49, 51, 53, 54, 57, 58, 59, 62, 66 | ||||
| Modul robah gears (mm/in) | 1.5 | 2 | |||
| 0.06 | 0.08 | ||||
| Huntu No.pergantian gears | 25, 25, 30, 35, 40, 50, 55, 60, 70, 80, 90, 100 | ||||
| Kasalahan indexing individu tina spindle pikeun hiji | 60″ | ± 45″ | |||
| revolusi lengkep ngabagi cecekelan | |||||
| Kasalahan indexing akumulatif dina unggal unggal | ± 1′ | ||||
| opat kuadran | |||||
| Item No | 521010 | 521012 | 521014 | 521016 | |

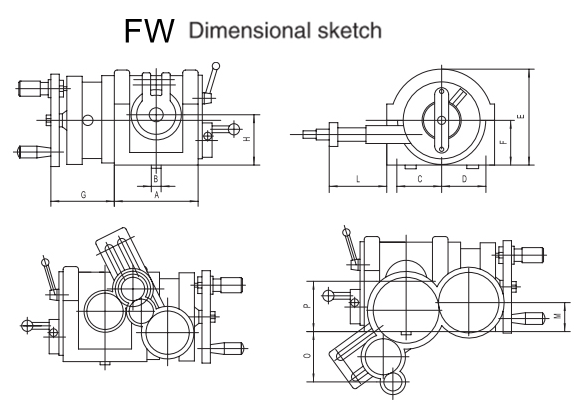

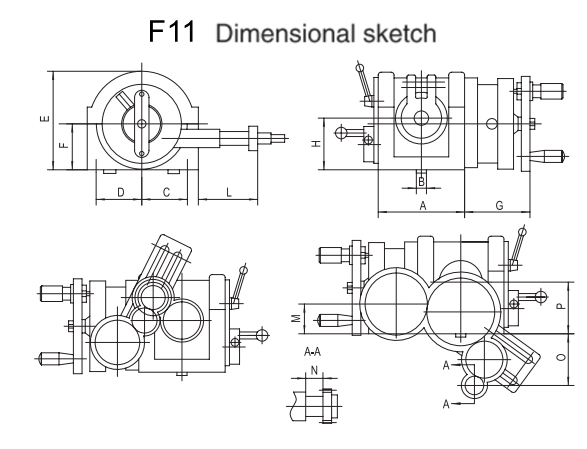

| FW;F11 sketsa instalasi sareng dimensi | |||||||||||||
|
| A | B | C | D | E | F | G | H | L | M | N | O | P |
| FW 80 | 139 | 14 | 77 | 73 | 147 | 77 | 98 | 80 | 106 | 43 | 30 | 60 | 80 |
| F11 100A | 162 | 14 | 102 | 87 | 186 | 95 | 116 | 100 | 93 | 54.7 | 30 | 100 | 100 |
| F11 125A | 209 | 18 | 116 | 98 | 224 | 117 | 120 | 125 | 103 | 68.5 | 34.5 | 100 | 125 |
| F11 160A | 209 | 18 | 116 | 98 | 259 | 152 | 120 | 160 | 103 | 68.5 | 34.5 | 100 | 160 |
| Asesoris: |
| Tailstock |
| Robah gear bakul |
| Robah gear Qty.12 |
| Jack |
| Puseur |
| Pamawa |
| piring liang |
| Flange |
| 3-rahang chuck |
